Flexible Impeller Pumps -Motor Driven- Zuwa Zumpe
Flexible Impeller Pumps -Motor Driven
Flexible Impeller Pumps -Motor Driven- Zuwa Zumpe
Featuring a Stainless Steel impeller case, and Stainless Steel end closure, these pumps are designed for liquids which are not chemically agressive to Stainless Steel, and are mildly abrasive, the Stainless Steel impeller case preventing wear of the impeller chamber.
VERSIONS WITH EPDM OR NEOPRENE IMPELLERS ARE ALSO SUITABLE FOR FOODSTUFFS AND F.D.A. COMPLIANT CERTIFICATES ARE PROVIDED WITH THIS MODEL.
These top quality, extremely durable Flexible-Impeller pumps are excellent for pumping viscous liquids which have a particulate content, for example Waste Engine Oil, Waste Cutting Oil, Waste Lubricating Oil, Waste Vegetable Oil, and Waste Glycerine (Subject to selection of the correct impellor material for chemical compatibility). The motors supplied with these pumps are Continuous Duty rated, and will go on and on
The Flexible Impeller itself is made from either NBR, Viton, Neoprene, or EPDM, Viton being a rubber which is chemically resistant to liquids of many types including the above mentioned liquids. The impeller blades flex as particle matter passes between them and the pump housing, this prevents damage to the impeller and promotes long life of the pump. NBR is suitable for conventional diesel and motor oils only
These pumps are especially popular with producers of Bio Fuels, who require pumps which can suck up Waste Oil from a storage bin / tank and dispense it into a drum or other vessel for removal from site
Available in a variety of voltages including 230v, 12vDC, and 24vDC
STANDARD MODEL IS FITTED WITH A UNI-DIRECTIONAL MOTOR AND 1/0 ROCKER SWITCH, THIS MEANS IT CAN ONLY PUMP IN ONE DIRECTION. 230vAC PUMPS CAN BE SUPPLIED WITH A BI-DIRECTIONAL MOTOR AND 1/0/1 ROTARY SWITCH, THIS ENABLES THE PUMP TO PUMP IN BOTH DIRECTIONS, HOWEVER, THIS OPTION MUST BE SELECTED AT TIME OF PURCHASE, IT CANNOT BE FITTED LATER AS IT REQUIRES A DIFFERENT MOTOR TO BE USED DURING MANUFACTURE. SELECT OPTION "Bi-Directional Switch" FROM THE OPTIONS LISTED BELOW, AS WELL AS THE PUMP YOU REQUIRE.

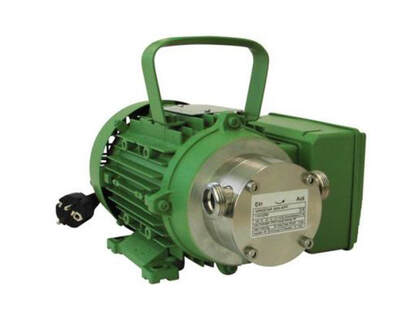

Model 2000-A and 2000-B

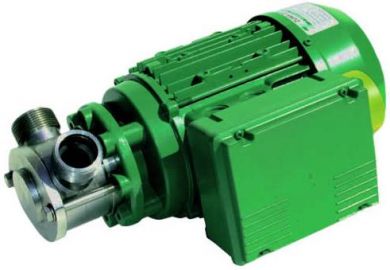

Model 2000-C

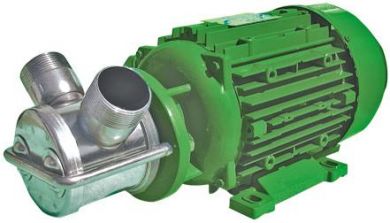

Model 2000-D

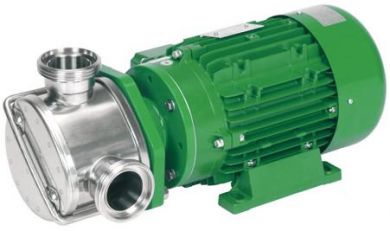

Model 2000-E

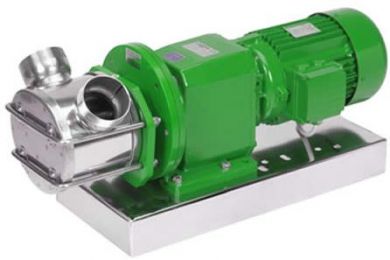

Model 2000-F
|

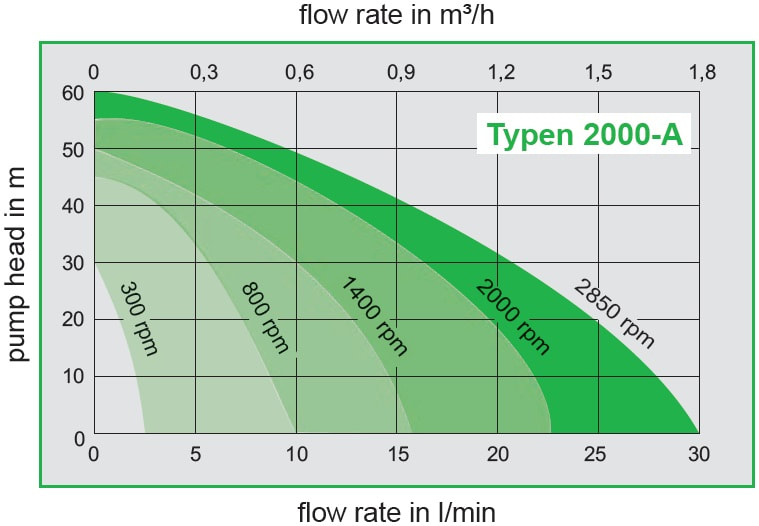

Performance Curve - 2000-A

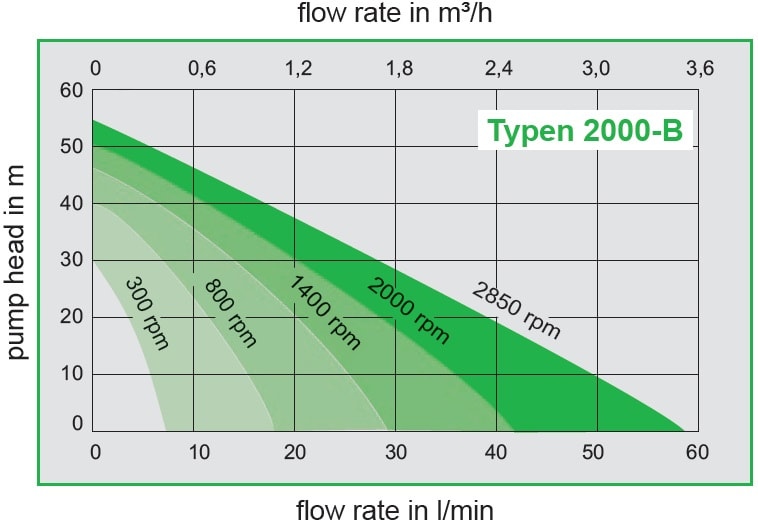

Performance Curve - 2000-B

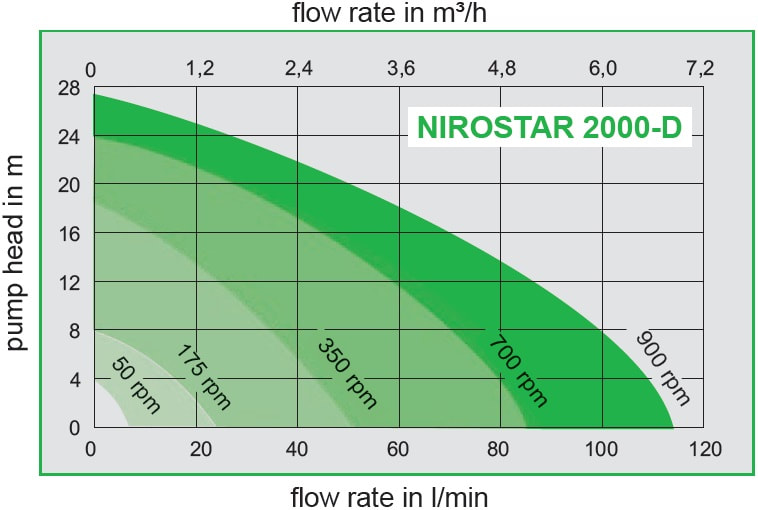

Performance Curve - 2000-D

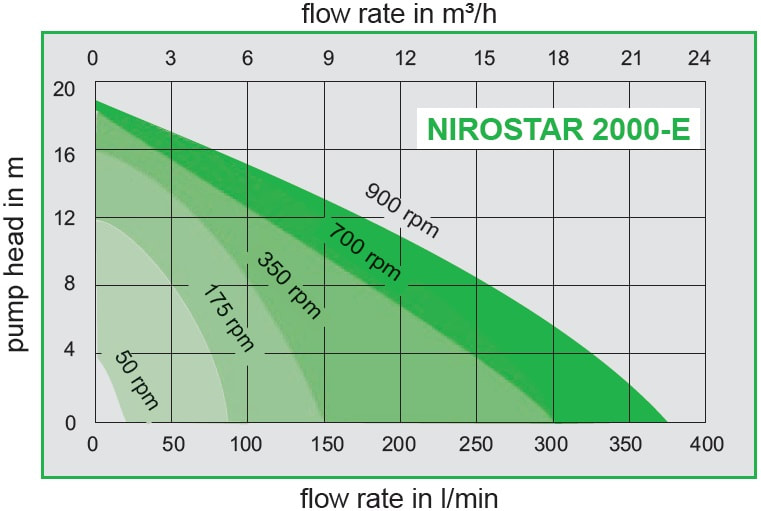

Performance Curve - 2000-E

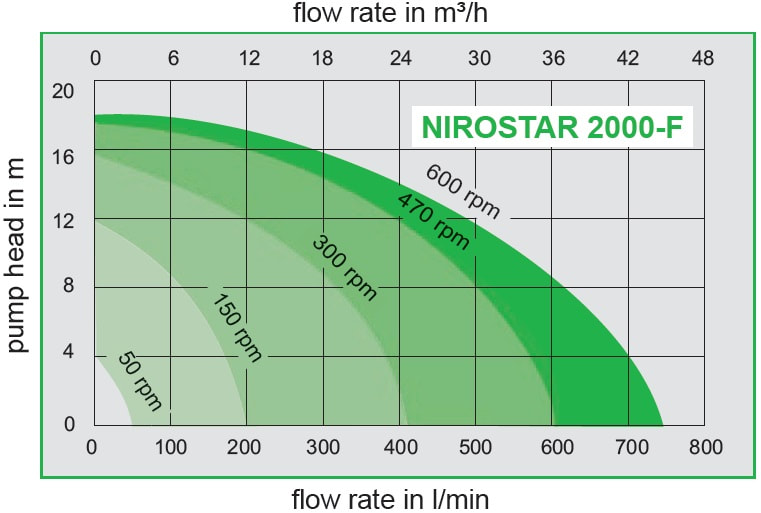

Performance Curve - 2000-F
|
Flexible Impeller Pumps -Shaft Driven with Drill Adaptor-Zuwa Zumpe

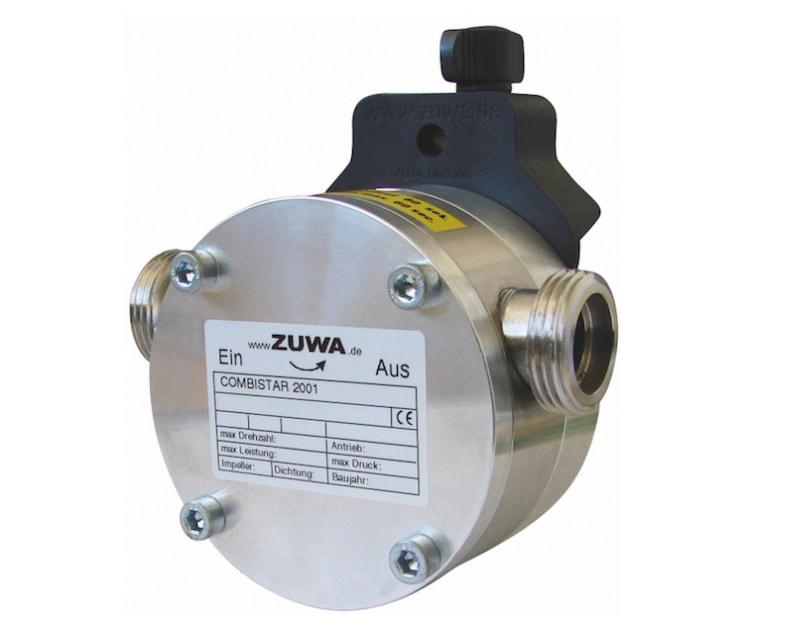

Flexible Impeller Pumps -Shaft Driven with Drill Adaptor
Flexible Impeller Pumps - Shaft Driven with Drill Adaptor Zuwa Zumpe
Featuring a Stainless-Steel impeller case, and Stainless-Steel end closure, these pumps are designed for liquids which are not chemically aggressive to Stainless Steel, and are mildly abrasive.
Version with Neoprene Impeller Is Also Suitable for Foodstuffs And F.D.A. Compliant Certificates Are Provided With This Model.
Top quality, shaft-driven flexible impeller pumps for pumping any chemicals that are not aggressive to the pumps component materials. The pump can also handle solid, non-abrasive material such as sludge from oil tanks, so are ideal for pump outs or as a pump to evacuate sump areas of machinery, for applications where large abrasive particles are present always use a foot-valve with strainer to prevent the ingress of this material
This pump can be powered by a battery or mains powered drill, and comes with an adaptor that enables the drills depth-stop rod to act as a mechanical coupling to prevent the pump spinning.
Featuring a Stainless-Steel impeller case, and Stainless-Steel end closure, these pumps are designed for liquids which are not chemically aggressive to Stainless Steel, and are mildly abrasive.
Version with Neoprene Impeller Is Also Suitable for Foodstuffs And F.D.A. Compliant Certificates Are Provided With This Model.
Top quality, shaft-driven flexible impeller pumps for pumping any chemicals that are not aggressive to the pumps component materials. The pump can also handle solid, non-abrasive material such as sludge from oil tanks, so are ideal for pump outs or as a pump to evacuate sump areas of machinery, for applications where large abrasive particles are present always use a foot-valve with strainer to prevent the ingress of this material
This pump can be powered by a battery or mains powered drill, and comes with an adaptor that enables the drills depth-stop rod to act as a mechanical coupling to prevent the pump spinning.

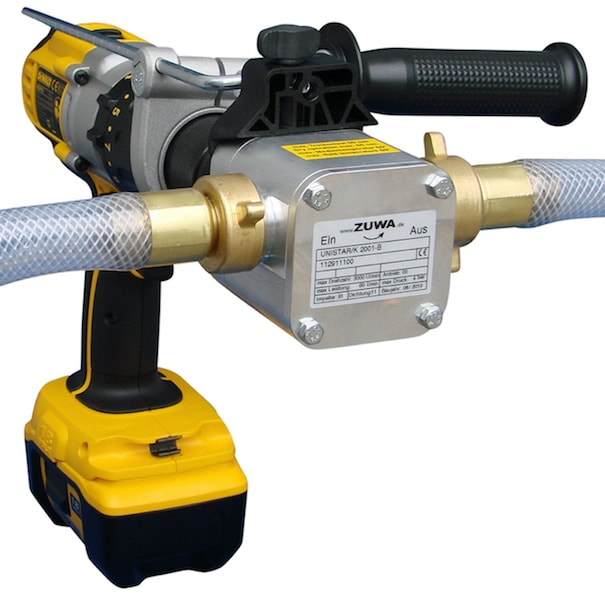

Pump assembled to drill utilizing depth stop rod
|
|
Flexible Impeller Pumps- Shaft Driven with Drill Adaptor- Zuwa Zumpe
Flexible Impeller Pumps, Shaft Driven / Drill Powered
Featuring a Stainless-Steel impeller case, and Stainless-Steel end closure, these pumps are designed for liquids which are not chemically aggressive to Stainless Steel, and are mildly abrasive.
VERSION WITH NEOPRENE IMPELLER IS ALSO SUITABLE FOR FOODSTUFFS AND F.D.A. COMPLIANT CERTIFICATES ARE PROVIDED WITH THIS MODEL.
Top quality, shaft-driven flexible impeller pumps for pumping any chemicals that are not aggressive to the pumps component materials. The pump can also handle solid, non-abrasive material such as sludge from oil tanks, so are ideal for pump outs or as a pump to evacuate sump areas of machinery, for applications where large abrasive particles are present always use a foot-valve with strainer to prevent the ingress of this material
This pump can be powered by a battery or mains powered drill or by making an adaptor to suit any motor shaft
VERSION WITH NEOPRENE IMPELLER IS ALSO SUITABLE FOR FOODSTUFFS AND F.D.A. COMPLIANT CERTIFICATES ARE PROVIDED WITH THIS MODEL.
Top quality, shaft-driven flexible impeller pumps for pumping any chemicals that are not aggressive to the pumps component materials. The pump can also handle solid, non-abrasive material such as sludge from oil tanks, so are ideal for pump outs or as a pump to evacuate sump areas of machinery, for applications where large abrasive particles are present always use a foot-valve with strainer to prevent the ingress of this material
This pump can be powered by a battery or mains powered drill or by making an adaptor to suit any motor shaft
|
|

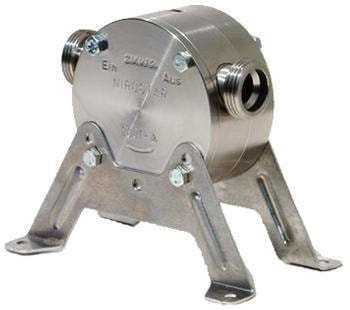

Pump bolted to optional Base-Plate 110123
|

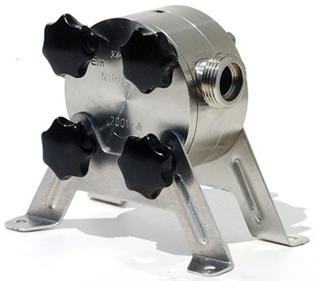

Pump with optional thumb screws (for ease of cleaning in food applications)
|
